HiMON®

Modular measuring and condition assessment system for HV cables

HiMON® is a modular measuring and condition assessment system for fast localization of cable breakdowns and evaluation of partial discharges.

Your Advantages at a Glance

  1. Reduction of downtime costs

  2. Increase of availability

  3. Suitable for new and existing cable

  4. HIGHVOLT as a reliable partner for complex projects

  5. HIGHVOLT is neutral

Show all

Product Information

Get in touch with us to get your personal login credentials to download papers with detail information.

Login

Select language

Additional ressources

Get in touch with us to get your personal login credentials to download papers with detail information.

Login

Select language

Availability comparision of transmission lines

Approximate availability depends on cable length

95 %

Underground cable

92 - 97 %

Subsea cable

99 %

Overhead line

How to increase availability of cable transmission lines?

  1. Fast localization of cable breakdowns

  2. Detection of oncoming faults

  3. Evaluation of aging

Show all

Increase in availability for cable systems

HiMON® makes the availability of cable systems comparable to that of overhead lines.

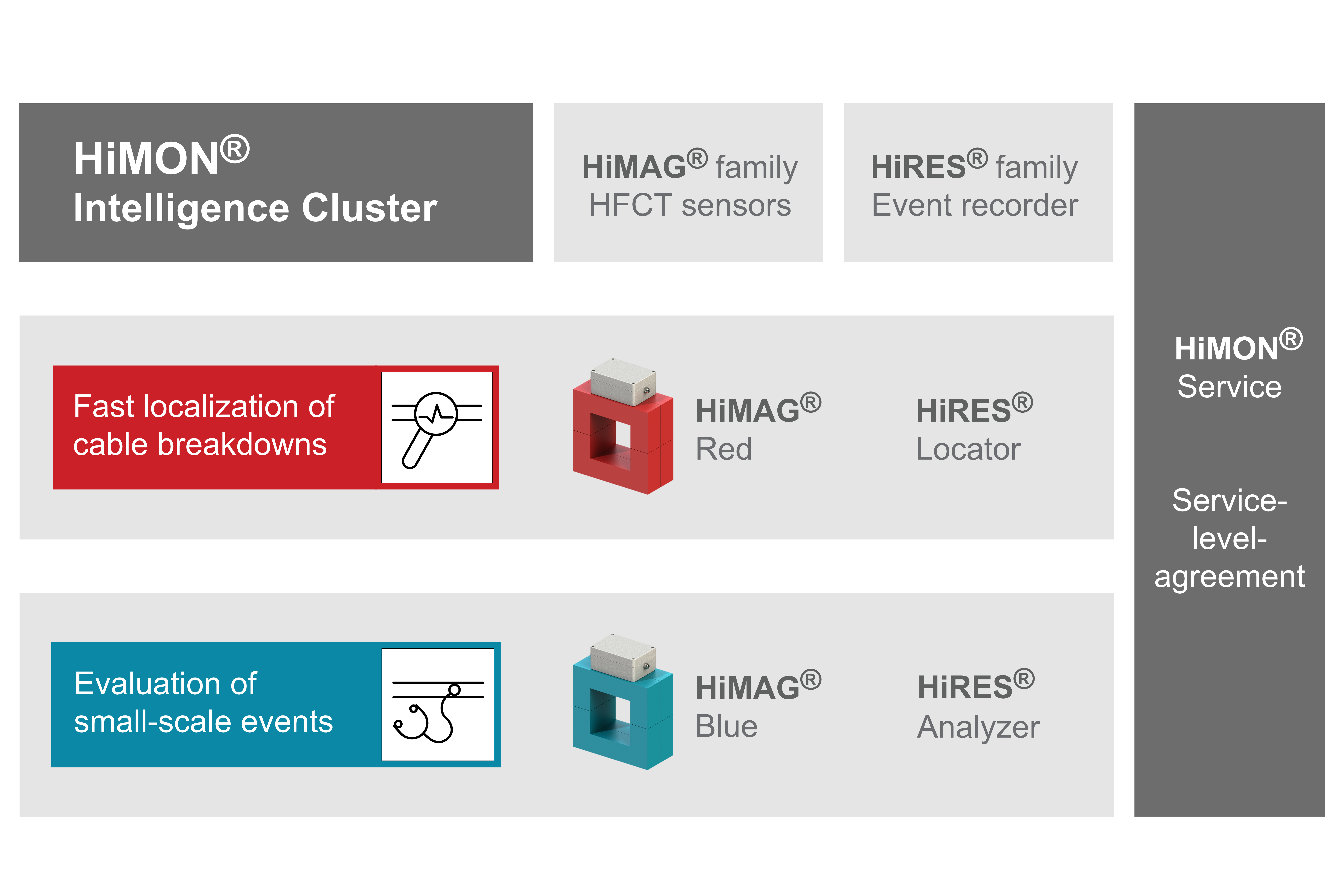

Product and service overview

Methods

RT-TF Analysis and synthesis of all cable sections

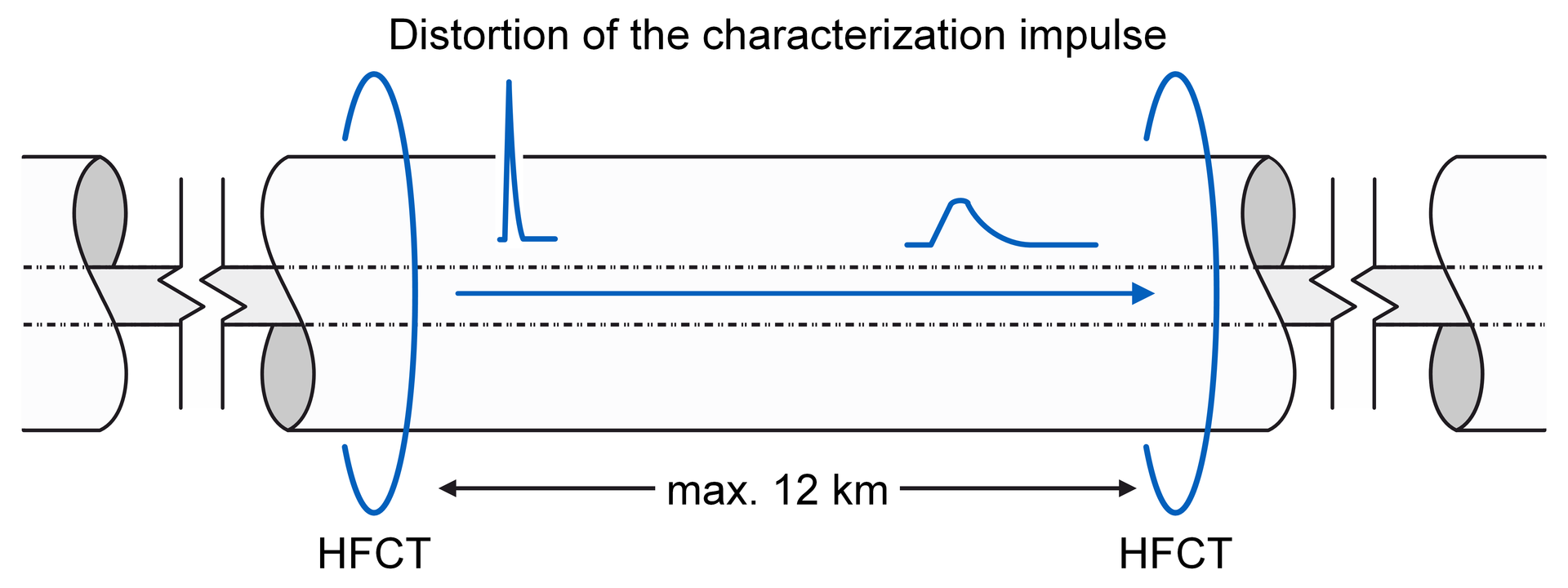

Periodic modelling of a cable section between two sensor units. Injection of small impulses into the cable in order to determine the transfer function of the cable section.

TruePD Measurement and filtering of real signals

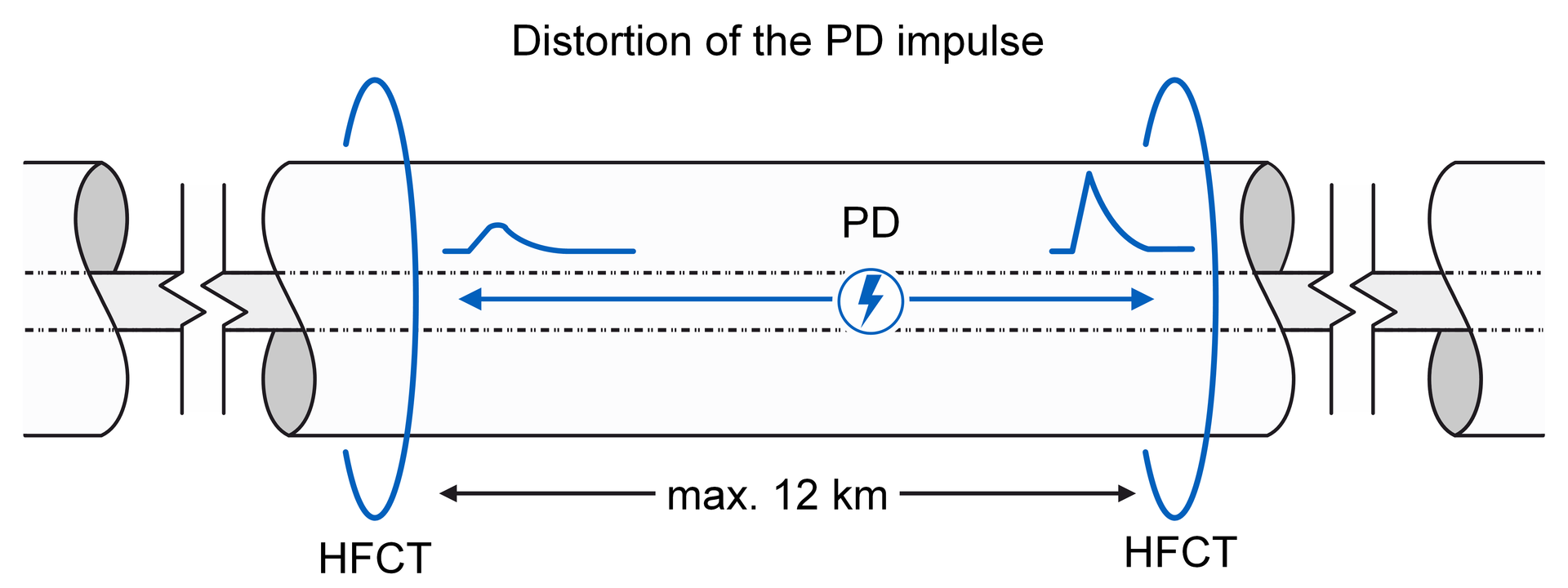

Localization and determination of detected partial discharges at the location of the fault under consideration of the actual cable transfer function. Classification and characterization of the events with AI algorithms.

Cable breakdown

A break down within the cable insulation causes a high power transient impulse that leads to travelling waves moving in both directions of the fault location.

Fault localization

Determining the location of the fault under consideration of the measured transit time of the travelling waves.

Expert system

The HiMON® Intelligence Cluster is a cloud-based solution for evaluating the transmitted measured values. The extensive knowledge of our experts is used to continuously improve stochastic algorithms and artificial intelligence methods.

RT-TF Analysis and synthesis of all cable sections

Periodic modelling of a cable section between two sensor units. Injection of small impulses into the cable in order to determine the transfer function of the cable section.

TruePD Measurement and filtering of real signals

Localization and determination of detected partial discharges at the location of the fault under consideration of the actual cable transfer function. Classification and characterization of the events with AI algorithms.

Cable breakdown

A break down within the cable insulation causes a high power transient impulse that leads to travelling waves moving in both directions of the fault location.

Fault localization

Determining the location of the fault under consideration of the measured transit time of the travelling waves.

Expert system

The HiMON® Intelligence Cluster is a cloud-based solution for evaluating the transmitted measured values. The extensive knowledge of our experts is used to continuously improve stochastic algorithms and artificial intelligence methods.

Added availability of transmission systems functions

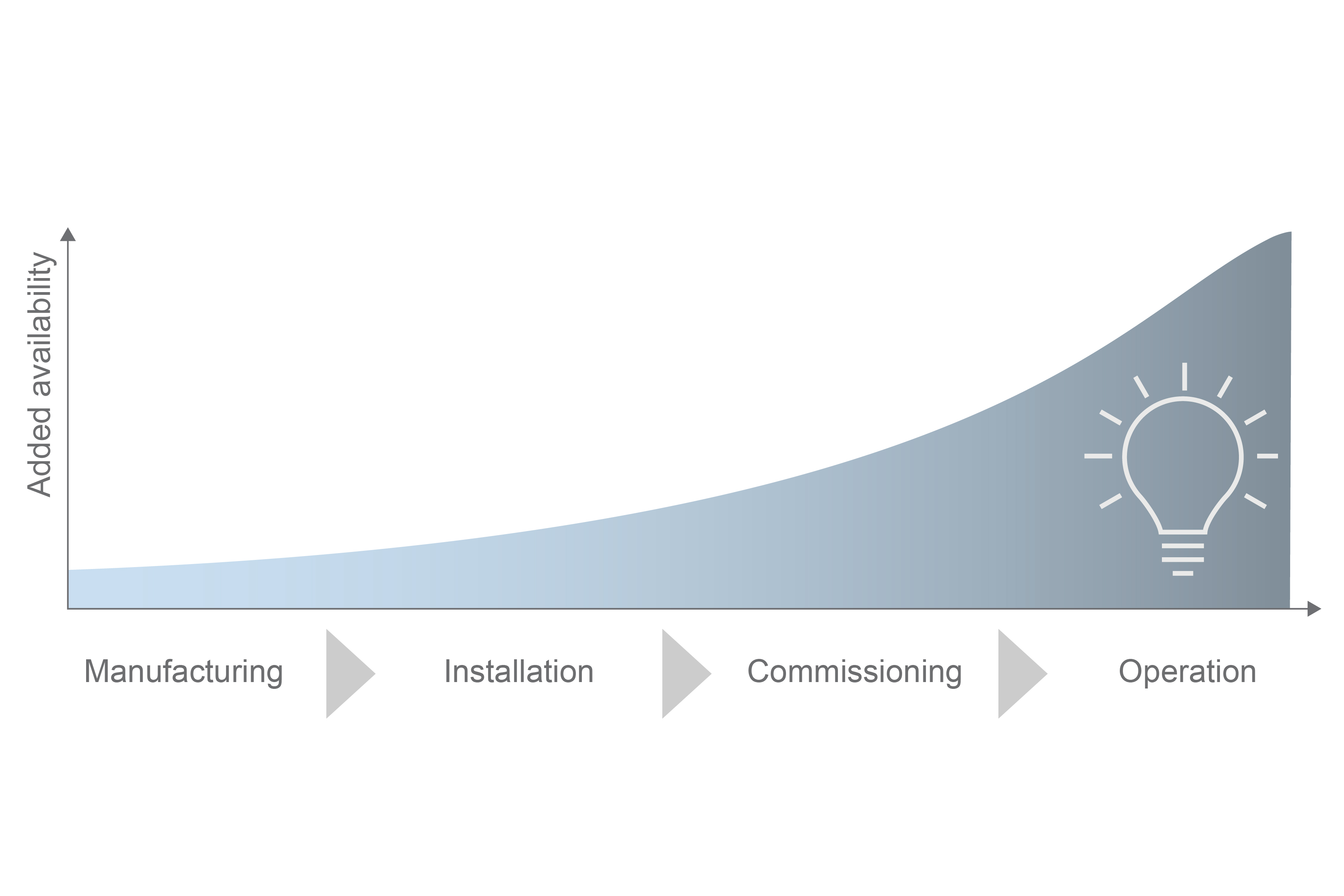

HiMON® increases the availability through combining functions in every phase of a cable lifespan



Manufacturing

  • Fast localization of cable breakdowns

  • Quality assurance (PD) for joints/cables

Installation

  • Theft monitoring for the cable system

  • Quality assurance (TF) during on site joint installation

Commissioning

  • Fast localization of cable breakdowns

  • Quality assurance (PD) for joints/cables

Operation

  • Fast localization of cable breakdowns

  • Small scale event evaluation

  • Risk analysis

Manufacturing

  • Fast localization of cable breakdowns

  • Quality assurance (PD) for joints/cables

Installation

  • Theft monitoring for the cable system

  • Quality assurance (TF) during on site joint installation

Commissioning

  • Fast localization of cable breakdowns

  • Quality assurance (PD) for joints/cables

Operation

  • Fast localization of cable breakdowns

  • Small scale event evaluation

  • Risk analysis

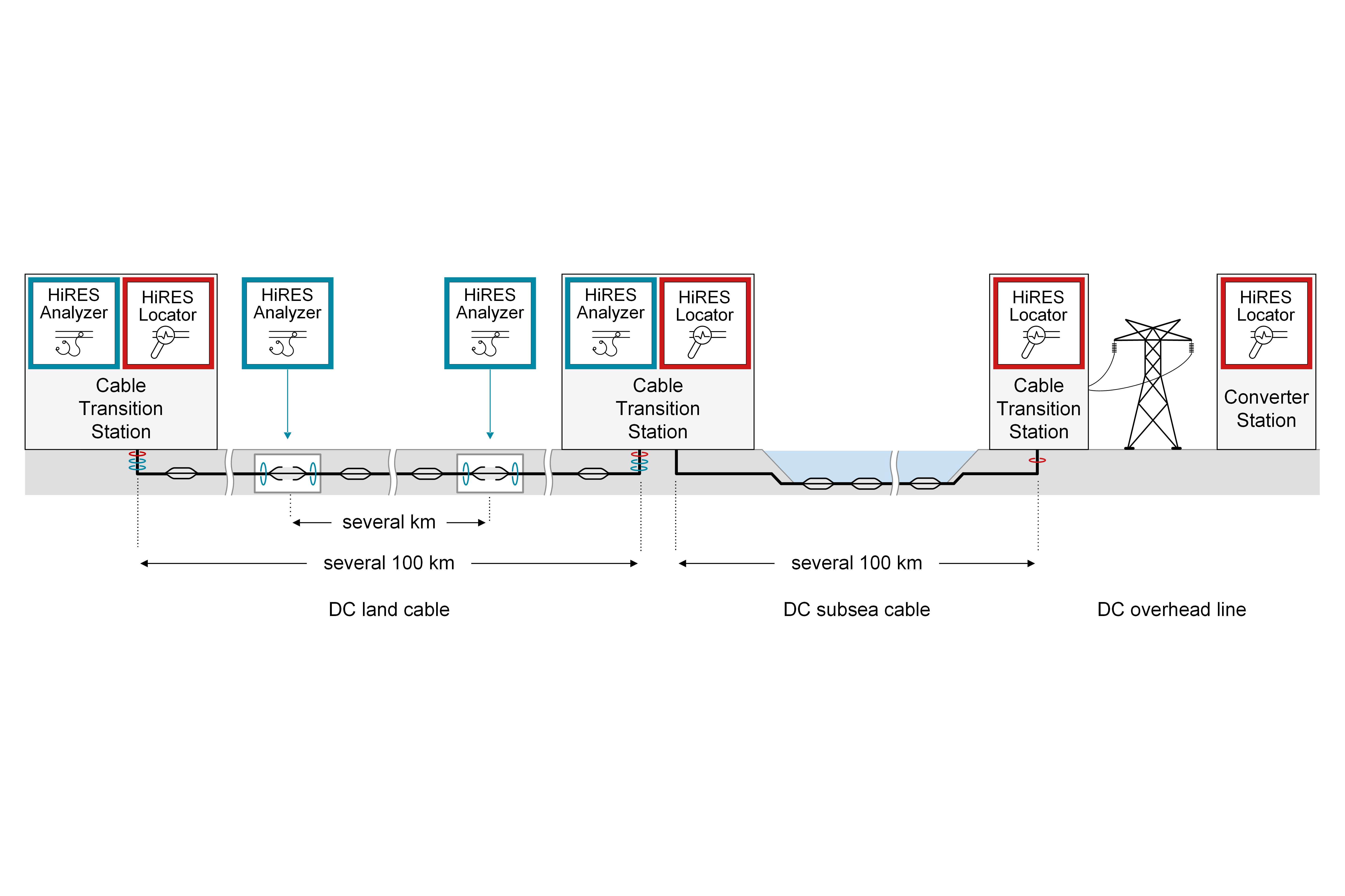

Installation of measuring points

only every 12 km is worldwide unique
